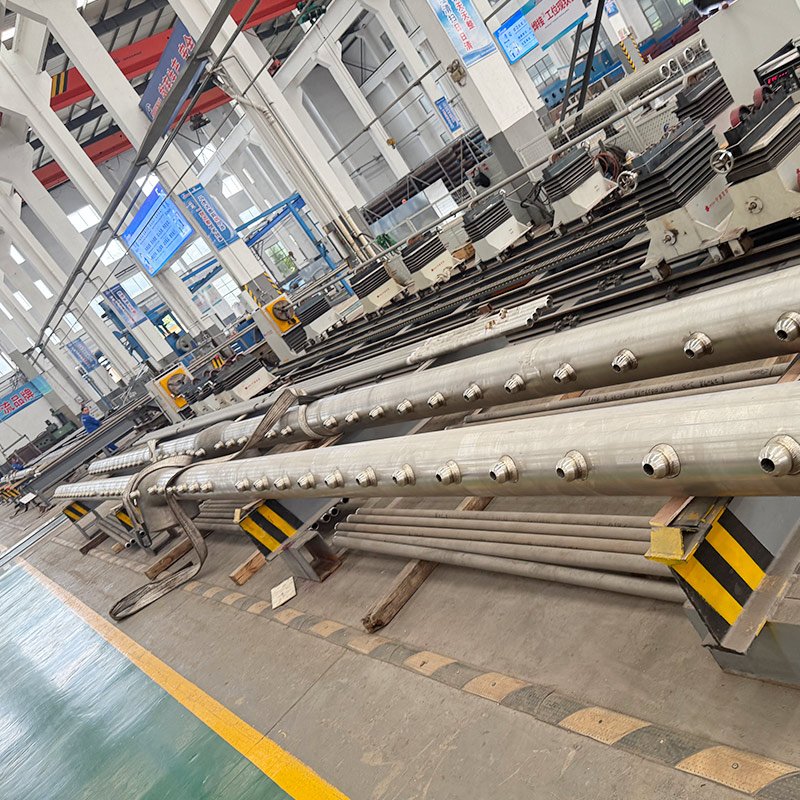

Manifold

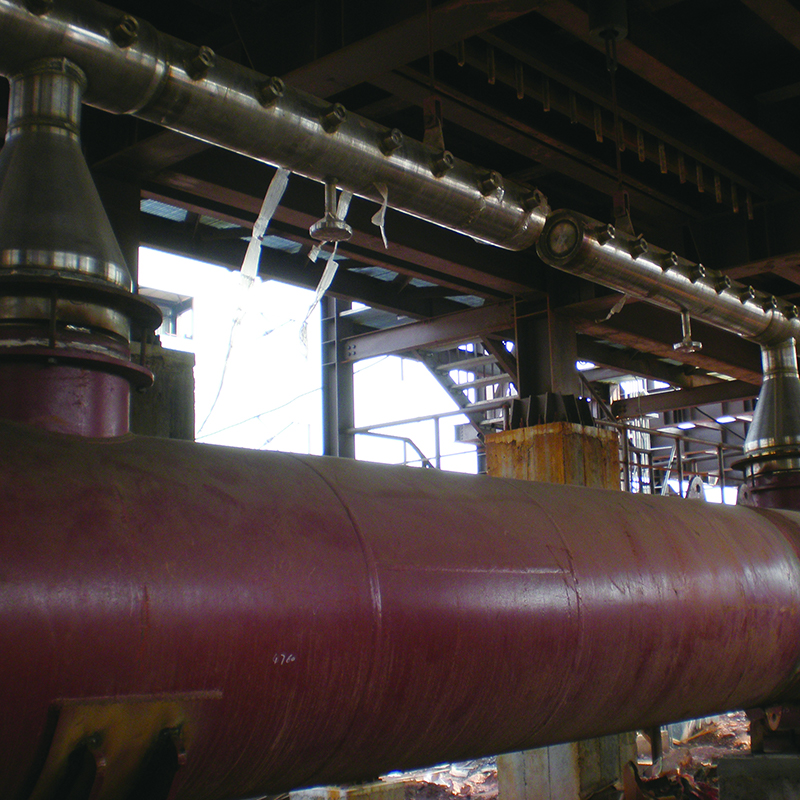

The outlet manifold collectors high-temperature converted gas (H₂+CO+CO ₂+CH ₄) from multiple radiation tubes, with a temperature of up to 700-900 °C, and needs to withstand thermal stress and hydrogen corrosion.

The inlet manifold collectors transport raw gas (such as a mixture of natural gas and water vapor), typically at a temperature below 400 °C, but the medium may contain chloride ions or trace amounts of sulfur, requiring protection against pitting corrosion.

Inquiry Now
  • Recommended materials:

    Outlet Manifold Collectors

    347H stainless steel

    ● Advantages: stabilized with niobium, strong resistance to intergranular corrosion, suitable for frequent start-stop working conditions

    ● Standard: GB 5310/ASME SA312

    T91 (P91) steel

    ●Advantages: High-strength, low-alloy steel, high endurance strength, low coefficient of thermal expansion, suitable for large-diameter headers.

    ●Standard: ASME SA335/GB 5310





    Inlet Manifold  Collectors

    304L stainless steel

    ● Advantages: Low carbon, good anti-sensitization performance, suitable for general corrosive environments

    ● Standard: GB/T 14976/ASTM A312

    316L stainless steel

    ● Advantages: Containing molybdenum, strong resistance to chloride ion pitting corrosion, suitable for coastal or high chloride working conditions

    ● Standard: GB/T 14976/ASTM A312
